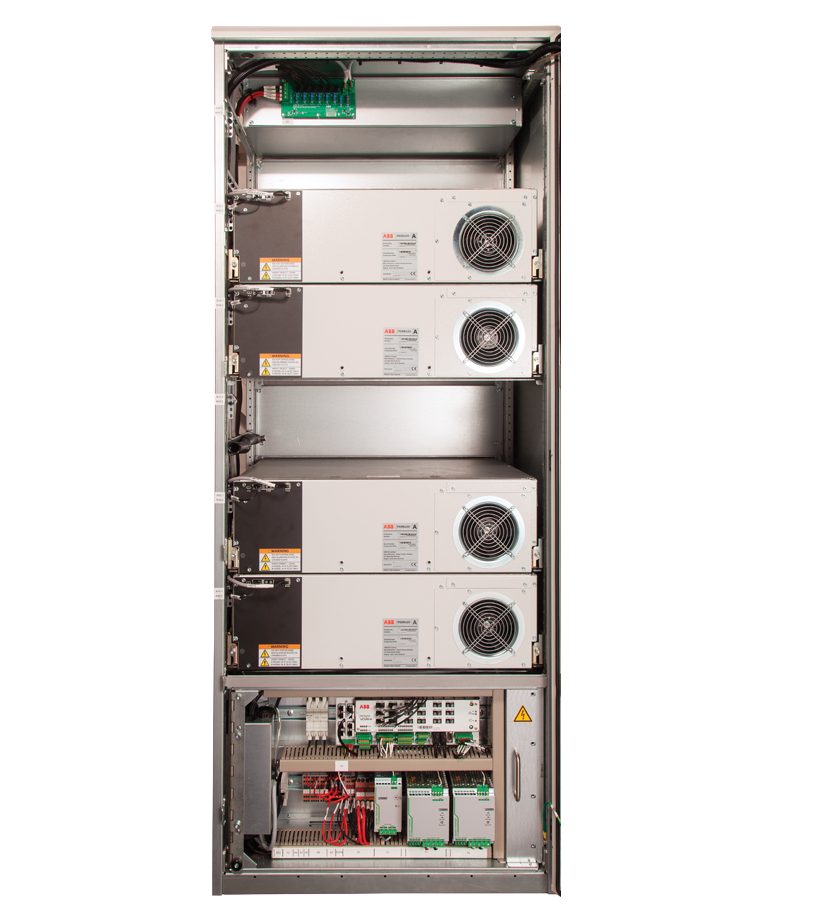

SP300

80-160m yachts

100-2000 kVA

3 phase

REQUEST BROCHURE

Latest design and specification for high-power applications. Includes
3 level switching for a reduced footprint and improved efficiency.

Key Features

Highly compact design with 3 level switching
Bi-directional power flow
High power quality output
High efficiency
High power density
Multiple system redundancy
Flexible system design
Unique modular design
Advanced diagnostics and monitoring
Operation noise <65 dB(A)
Bus bar clamp – no cable connections
Robust fibre-optic control.

Case Studies

M/Y Spectre 70m

Shore Power 300kVA

M/Y Spectre needed to replace their Shore Power Converter to reliably handle peak power conditions onboard. The converter was installed through a small hatch opening in an aft technical storage location with a restricted head room of 1.1m. The converter has built-in water cooling which is required not only to keep the converter cool, but also the compartment space. It has two independent shore cords to maximise power availability and has 50% system redundancy. An M Controller has been integrated for enhanced monitoring and to enable remote diagnostics for rapid support if required.

For more detailed information about Magnus SP300 shore-to-ship converters, including comprehensive technical details, simply click on the button below
