30-50m yachts
Single/3 phase

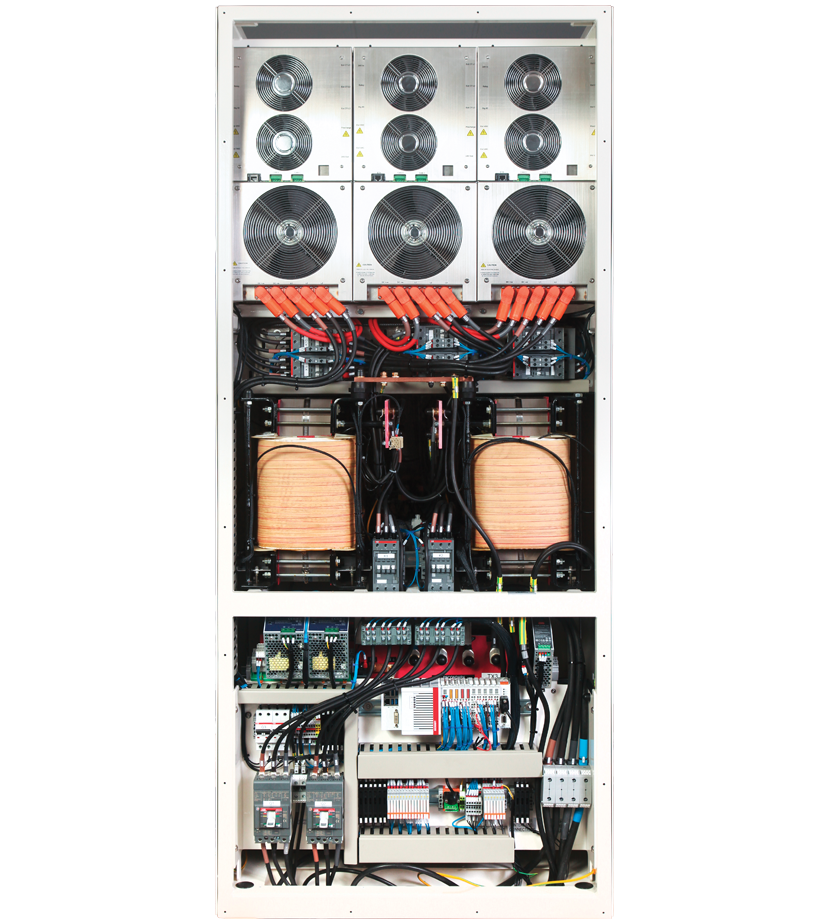

Modular and compact design, configurable for multiple shore cord inputs. Shore cords can be powered from any single or 3 phase supply. Output converter is powered by a common DC Bus which can be configured for single or 3 phase output.

Key Features

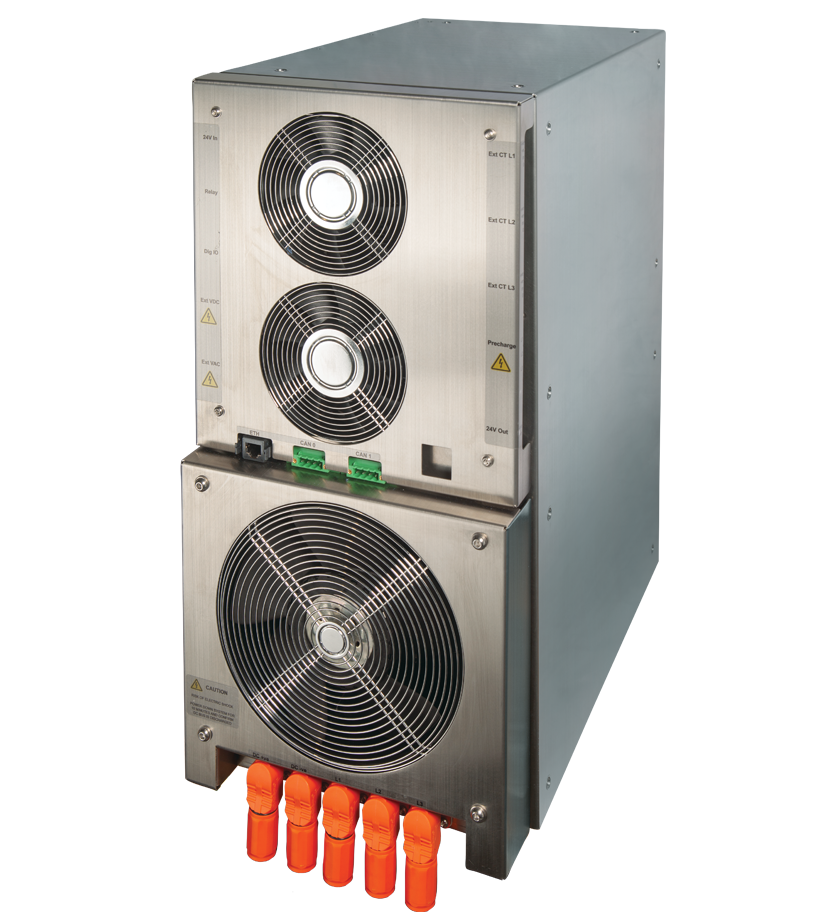

  • Universal rectifier and inverter module
  • Common DC Bus with multiple inputs
  • Single or 3 phase input connectivity
  • M Controller as standard – our advanced diagnostics tool with real-time monitoring
  • Full galvanic isolation
  • Stable output supply with all loads
  • High efficiency
  • Flexible system design.

Case Studies

S/Y Bliss 36.7m

Shore Power Converter 50kVA

After returning from worldwide sailing, a 50 kVA Shore Power Converter was retrofitted onboard S/Y Bliss to allow connection to shore when berthed in harbour. The system was fully dismantled to facilitate transportation through the engine room door. The system has a hybrid water cooling system where all heat generated is forced through a heat extraction unit, chilled by water. The chilled air is then circulated back into the compartment space. The temperature outlet, controlled by a 3-way valve, can be adjusted through the system's front panel graphic display.

For more detailed information about Magnus SP150 shore-to-ship converters, including comprehensive technical details, simply click on the button below
